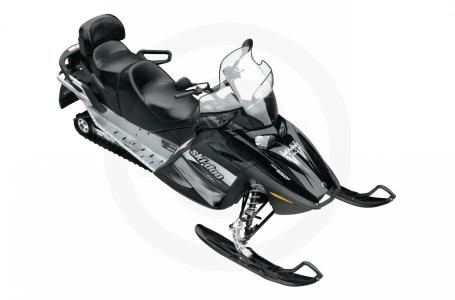

2009 Ski-Doo GTX FAN Rotax® 550F
Request a Quote Financing Calculator
Click here to view full image.
Request a Quote Financing Calculator
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Value sled perfect for enjoying the beauty of winter with a companion.

  • 550F engine
  • REV® platform
  • Motion Control shocks
  • SC™-136 rear suspension
  • 16 x 136 x 1.25-inch track
  • Pilot™ 5.7 dual-runner skis
  • Electric start
  • RER™ electronic reverse
  • Mirrors
  • High windshield
  • 2 + 1 capable seat w/ backrest
  • Cargo rack
  • Speedometer, tachometer
COLOR
  • Black
ENGINE
  • Engine: Rotax 550F
  • Engine details: Axial fan-cooled, cylinder reed porting
  • Cylinders: 2
  • Displacement: 553.4 cc / 33.8 in³
  • Bore: 76 mm / 3 in
  • Stroke: 61 mm / 2.4 in
  • Maximum engine speed: 7000 RPM
  • Carburetion: 2X VM-34
  • Recommended fuel type: Regular unleaded
  • Minimum octane: 87
  • Fuel tank: 40 liters / 10.6 gallons
  • Oil tank: 3.5 liters / 3.7 quarts
  • Exhaust system: Single tuned-pipe, baffle muffler
POWERTRAIN
  • Drive clutch type: Bombardier Lite
  • Driven clutch type: LPV 27
  • Engagement: 3000 RPM
  • Clutches center distance: 257.5 mm / 10.14 in
  • Small sprocket number of teeth: 21
  • Large sprocket number of teeth: 45
  • Drive sprocket number of teeth: 9
  • Drive sprocket diameter: 181.5 mm / 7.1 in
  • Brake system: Hydraulic, RT-Type brake lever
SUSPENSION
  • Front suspension: R.A.S.® w/sway bar
  • Front shock: Motion Control
  • Front suspension max. travel: 229 mm / 9 in
  • Rear suspension: SC-136
  • Front arm shock: Motion Control
  • Rear arm shock: HPG™
  • Rear suspension max. travel: 330.7 mm / 13 in
DIMENSIONS
  • Vehicle overall length: 3075 mm / 121.1 in
  • Vehicle overall width: 1217 mm / 47.9 in
  • Vehicle overall height: 1230 mm / 48.4 in
  • Official dry weight: 229 kg / 505 lb
  • Ski stance: 1195 mm / 47 in
  • Ski overall length: 1066 mm / 42 in
  • Ski width: 145 mm / 5.7 in
  • Track nominal width: 406.4 mm / 16 in
  • Track nominal length: 3456 mm / 136 in
  • Track profile height: 31.8 mm / 1.25 in
ADDITIONAL FEATURES
  • Skis: Pilot 5.7 dual-runner
  • Seating: 2 + 1 capable
  • Electric start: Standard
  • Reverse: Electronic
  • Speedometer: Standard
  • Electronic fuel gauge: Optional
  • Mirrors: Standard
  • Windshield: High
  • Handlebar: GTX type
  • Carbide runner: Standard
NOTES:

BRP reserves the right at anytime to discontinue or change specifications, price, design, features, models or equipment without incurring any obligation.


Specifications

Engine
Engine Type Rotax 550F, cylinder reed porting
Displacement 33.8 cu. in. (553.4 cc)
Bore x Stroke 3" x 2.4" (76 x 61 mm)
Cylinders 2
Engine Cooling Axial fan-cooled
Carburetion 2X VM-34
Exhaust Single tuned-pipe, baffle muffler
Drivetrain
Brake Type Hydraulic, RT-Type brake lever
Drive Clutch Bombardier Lite
Driven Clutch LPV 27
Suspension
Front Suspension R.A.S.® w/sway bar
Front Travel 9 in. (229 mm)
Rear Suspension SC-136
Rear Travel 13 in. (330.7 mm)
Ski Type Pilot 5.7 dual-runner
Ski Stance 47 in. (1195 mm)
Track Dimensions 136" x 16" x 1.25" (3456 x 406.4 x 31.8 mm)
General
Speedometer Standard
Fuel Capacity 10.6 gal. (40 l)
Dry Weight 505 lbs. (229 kg)
Windshield High
Color Black
Options
Electric Start Standard
Reverse Electronic
Mirrors Standard

Compare Models

 Print








Year 2009
Manufacturer Ski-Doo
Model GTX FAN Rotax® 550F
Style Touring
MSRP* $6,699.00
Drivetrain
Brake Type Hydraulic, RT-Type brake lever
Drive Clutch Bombardier Lite
Driven Clutch LPV 27
Engine
Engine Type Rotax 550F, cylinder reed porting
Displacement 33.8 cu. in. (553.4 cc)
Bore x Stroke 3" x 2.4" (76 x 61 mm)
Cylinders 2
Engine Cooling Axial fan-cooled
Carburetion 2X VM-34
Ignition
Exhaust Single tuned-pipe, baffle muffler
Alternator
General
Speedometer Standard
Tachometer
Odometer
Headlight
Fuel Capacity 10.6 gal. (40 l)
Dry Weight 505 lbs. (229 kg)
Windshield High
Color Black
Warranty
Options
Electric Start Standard
Hand & Thumb Warmers
Reverse Electronic
Mirrors Standard
Suspension
Front Suspension R.A.S.® w/sway bar
Front Travel 9 in. (229 mm)
Rear Suspension SC-136
Rear Travel 13 in. (330.7 mm)
Ski Type Pilot 5.7 dual-runner
Ski Stance 47 in. (1195 mm)
Track Type
Track Dimensions 136" x 16" x 1.25" (3456 x 406.4 x 31.8 mm)
